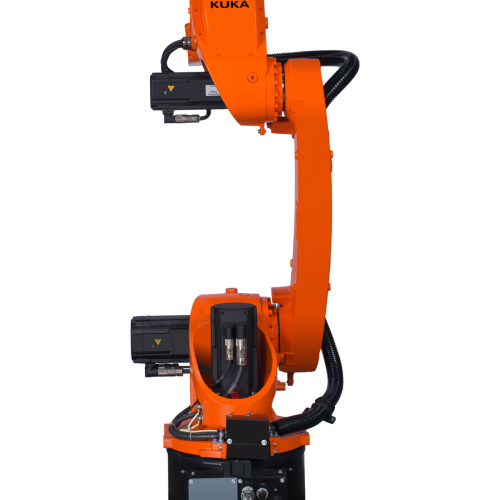

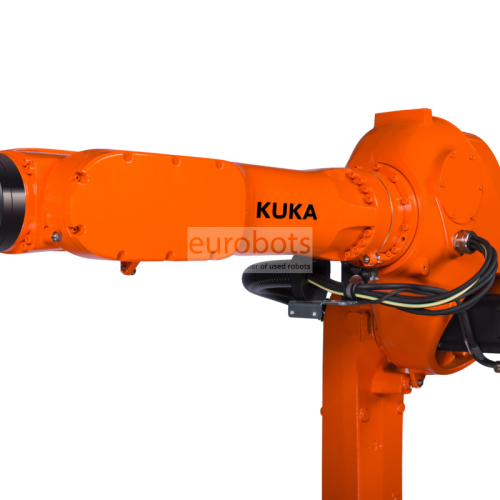

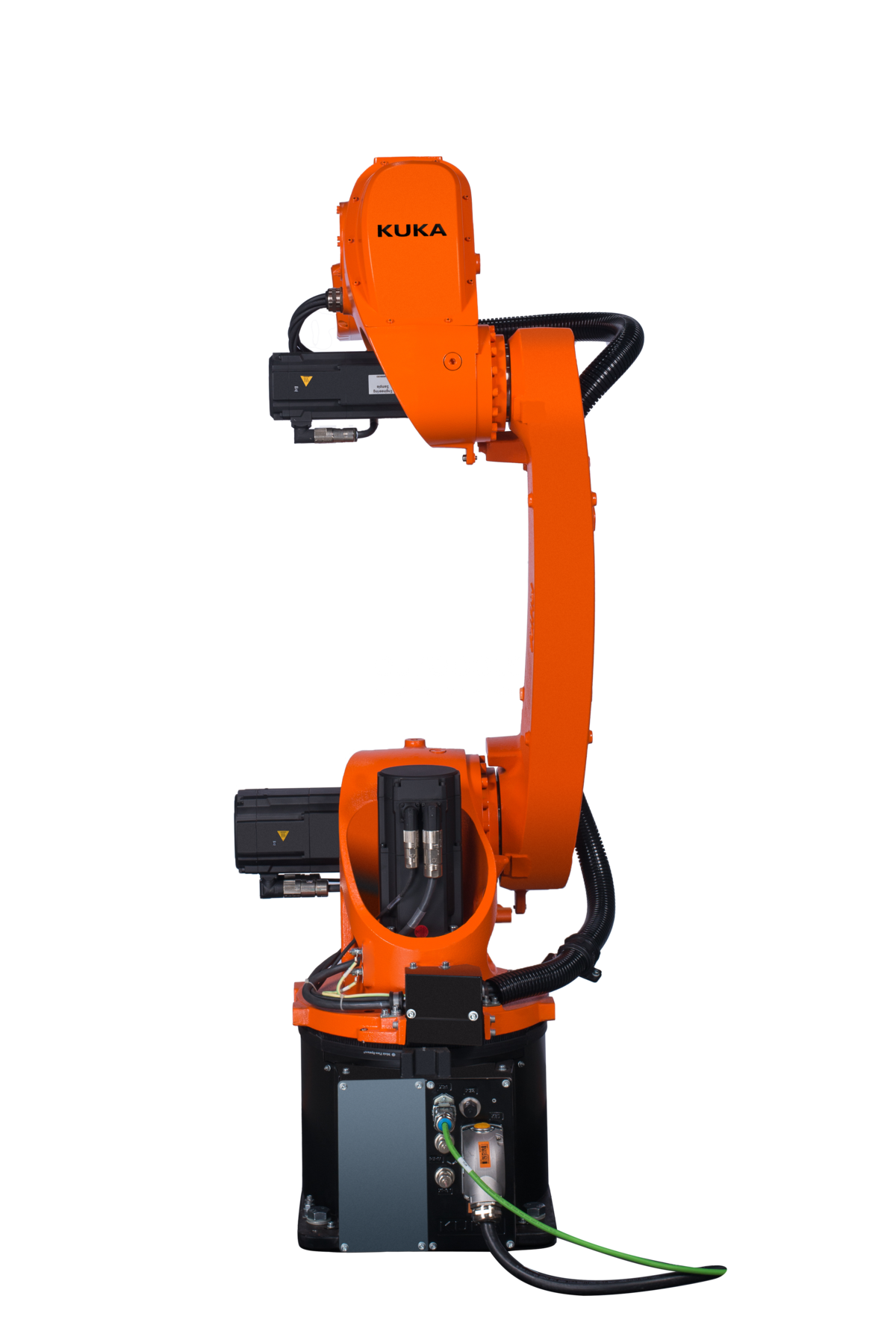

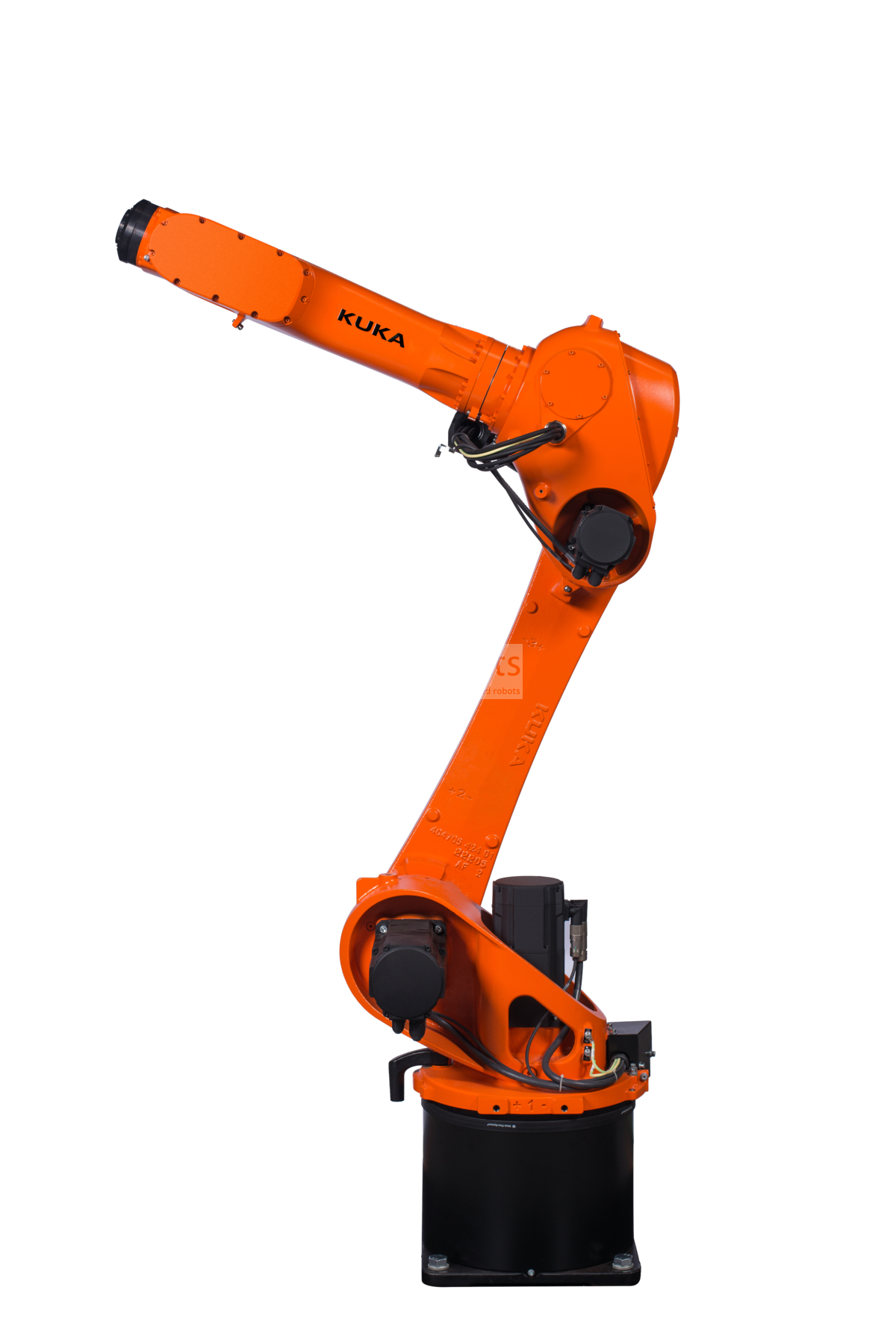

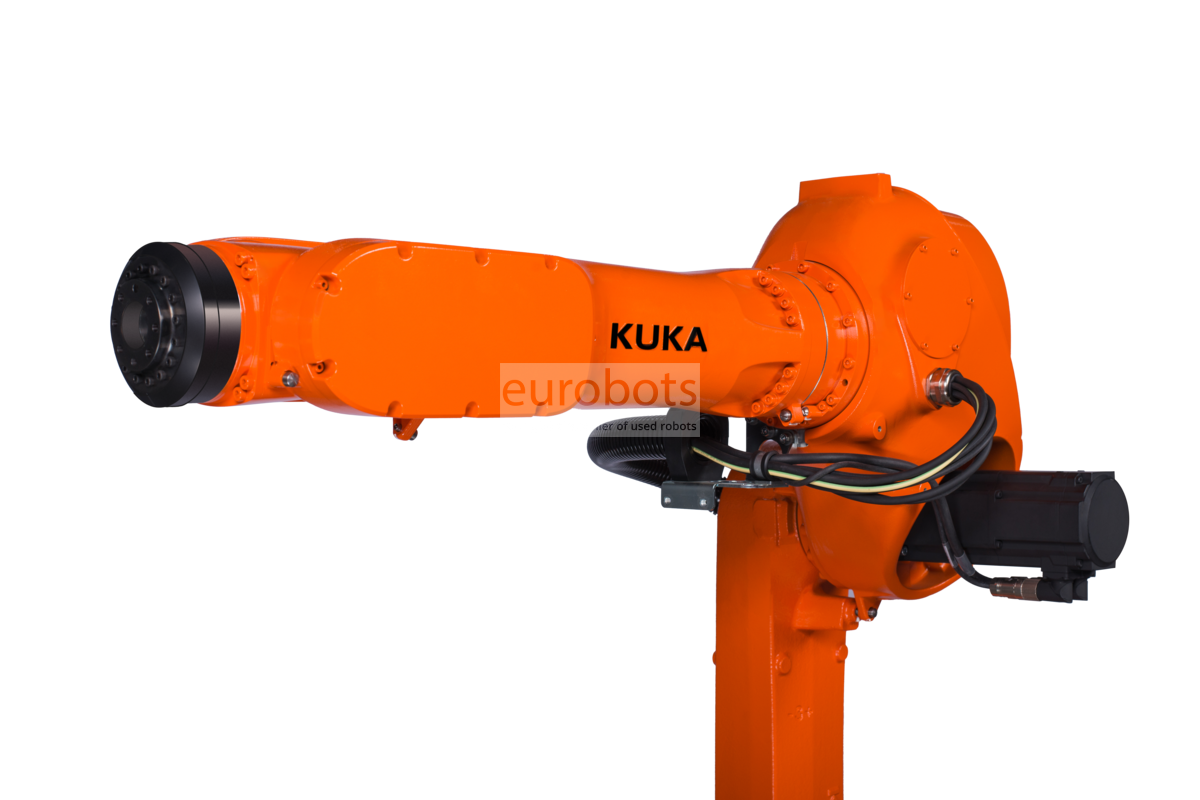

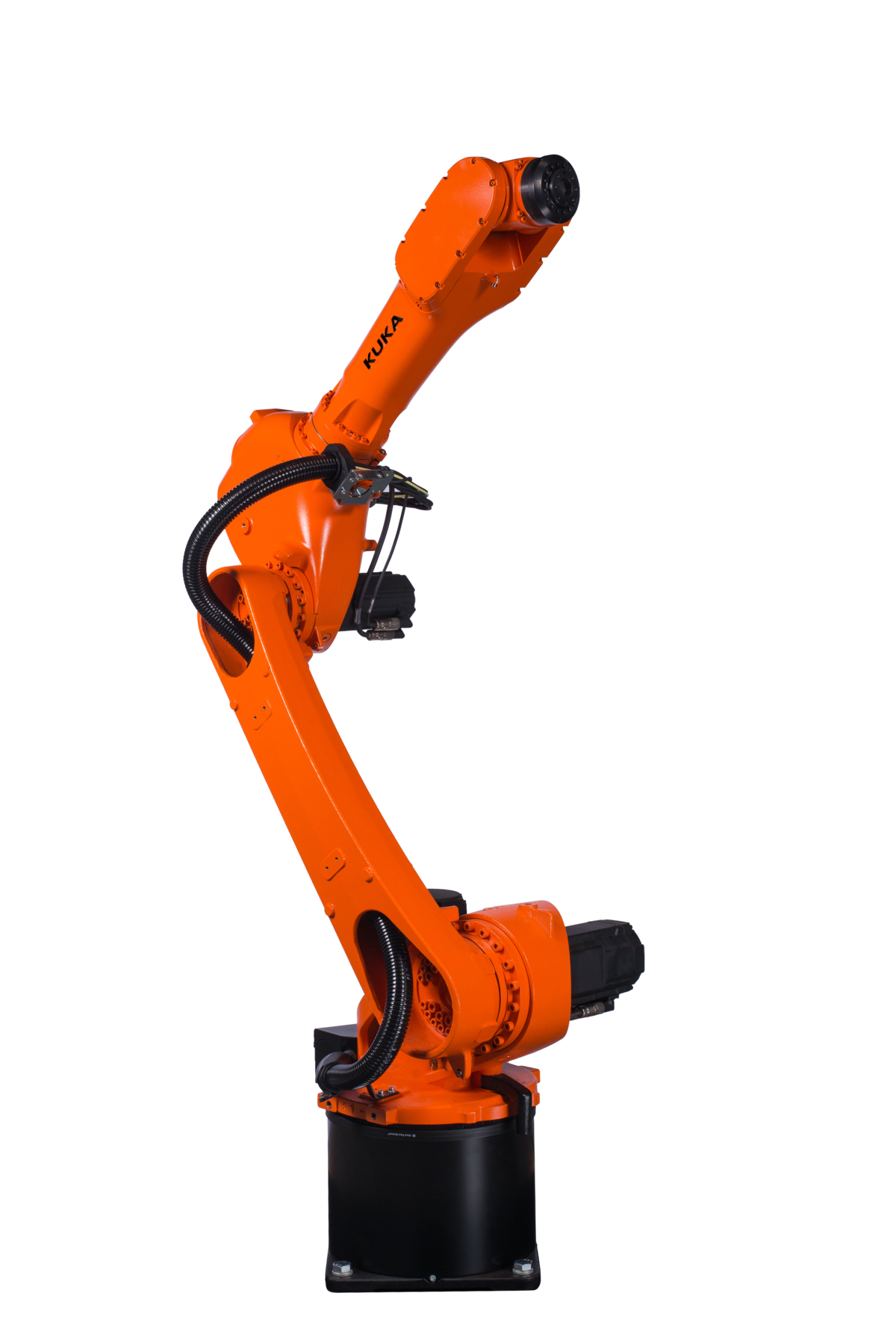

KUKA Cybertech KR 20 R1820-2 E
The KR CYBERTECH E series by KUKA is designed specifically for cost-effective automation of handling tasks and basic machining operations. These industrial robots are tailored for applications that demand efficiency and precision while maintaining budget-friendly implementation. With their compact design and robust performance, the KR CYBERTECH E series provides an ideal solution for small to medium-sized enterprises looking to automate simple yet essential processes.
Key features of the KR CYBERTECH E series include:
- Compact and Efficient Design: These robots are engineered to fit into space-saving cell concepts, allowing for easy integration into existing production lines without requiring significant alterations.
- High Precision and Speed: The series ensures quick cycle times and precise handling, enhancing productivity without compromising on quality.
- Versatile Applications: Perfect for handling tasks, such as picking and placing, loading and unloading, as well as basic machining tasks like cutting, drilling, and milling.
- Cost-Effective Automation: The KR CYBERTECH E series offers an economical entry point into robotic automation, reducing labor costs and increasing operational efficiency.
- Flexible Installation Options: These robots can be installed on the floor, wall, or ceiling, providing versatility in cell design and planning.
- User-Friendly Operation: Simplified programming and intuitive interfaces make it easy for operators to set up and manage the robots, even with minimal experience.
| Controller |
 |
|---|---|
| Number of axes | 6 |
| Rated payload | 20 kg |
| Wrist variant | - |
| Reach | 1,820 mm |
| Pose repeatability | 0.04 mm |
| Weight | 255 kg |
| Installation position | Floor, ceiling, wall, angle |
Range of motion
- Axis 1: +/- 185º
- Axis 2: -185º/+65º
- Axis 3: -138º/+175º
- Axis 4: +/-350º
- Axis 5: +/-120º
- Axis 6: +/-350º
Speed with rated payload
- Axis 1: 195º/s
- Axis 2: 175º/s
- Axis 3: 180º/s
- Axis 4: 360º/s
- Axis 5: 360º/s
- Axis 6: 550º/s
Robot Applications
- Arc Welding
- Assembly
- Cutting/Separation
- Handling
- Machine loading/unloading
- Machining
- Measuring/Inspection
- Palletizing/packaging
- Pick-and-place
Aplicaciones
Soldadura por arco , Carga y descarga de piezas , Mecanizado , Manipulación de piezas , Pulido , Medición , Montaje de piezas , Corte por láser , 3C Electronics , Advanced Manufacturing
