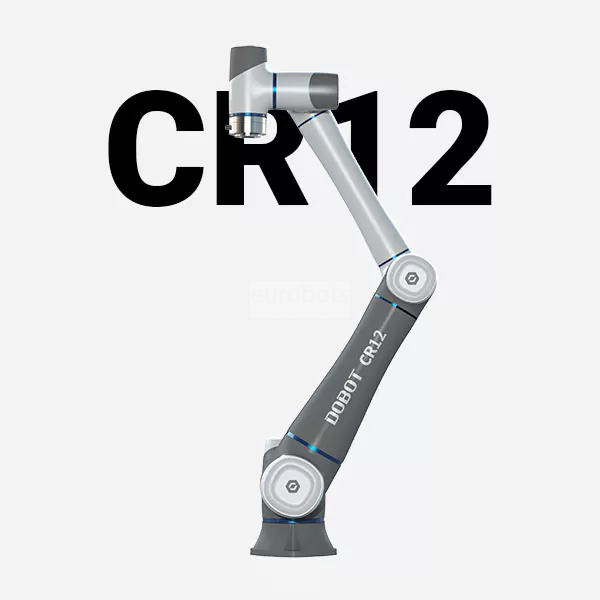

DOBOT CR12A cobot

En stock

Información
Especificaciones

The Dobot CR12A is a high-performance collaborative robot designed for tasks that require a greater payload and extended reach while maintaining precision and ease of use.

With a payload capacity of 12 kg and a working radius of 1200 mm, the CR12A is ideal for applications such as palletizing, machine tending, material handling, assembly, and quality inspection, making it suitable for industries like automotive, logistics, and manufacturing.

The robot features a plug-and-play design, allowing for quick deployment with a variety of compatible accessories from the Dobot ecosystem. It is equipped with a user-friendly graphical interface, supporting block programming (similar to Scratch) and scripting with LUA, while also offering compatibility with multiple programming languages through its API (C, C#, Python, Kotlin, etc.). Additionally, it can be controlled via smartphones, tablets, and computers.

The Dobot CR12A can be installed within 20 minutes and becomes fully operational in under an hour, enabling a fast and efficient automation process.

Weight		39.5 kg
Maximum Payload		12 kg
Working Radius		1200 mm
Maximum Linear Speed		2 m/s
Range of Motion	J1	±360°
	J2	±360°
	J3	±160°
	J4	±360°
	J5	±360°
	J6	±360°
Maximum Joint Speed	J1/J2/J3	150° /s
Maximum Joint Speed	J4/J5/J6	223° /s
End-Effector I/O Interface	DI/DO	2+2
End-Effector I/O Interface	AI/AO	0
Communication Interface	Communication	RS485
Controller I/O	DI	24
	DO/DI	24
	AI/AO	2/2
	ABZ Incremental Encoder	1
Repeatability		±0.02 mm
Communication		TCP/IP, Modbus, Profinet, ethernetIP, Wi-Fi
IP Rating		IP54
Noise		70 dB(A)
Temperature Range		0°C ～ 50°C
Power Consumption		350W
Installation Orientation		Any angle
Cable Length to Control Box		5m
Materials		Aluminum alloy, ABS plastic

Aplicaciones

Carga y descarga de piezas , Manipulación de piezas , Pulido , Medición , Montaje de piezas , Pegado - Pegado adhesivo , 3C Electronics , Advanced Manufacturing , Education
