Otros Robots Staubli RX130 XL

Esperando stock

Información
Especificaciones

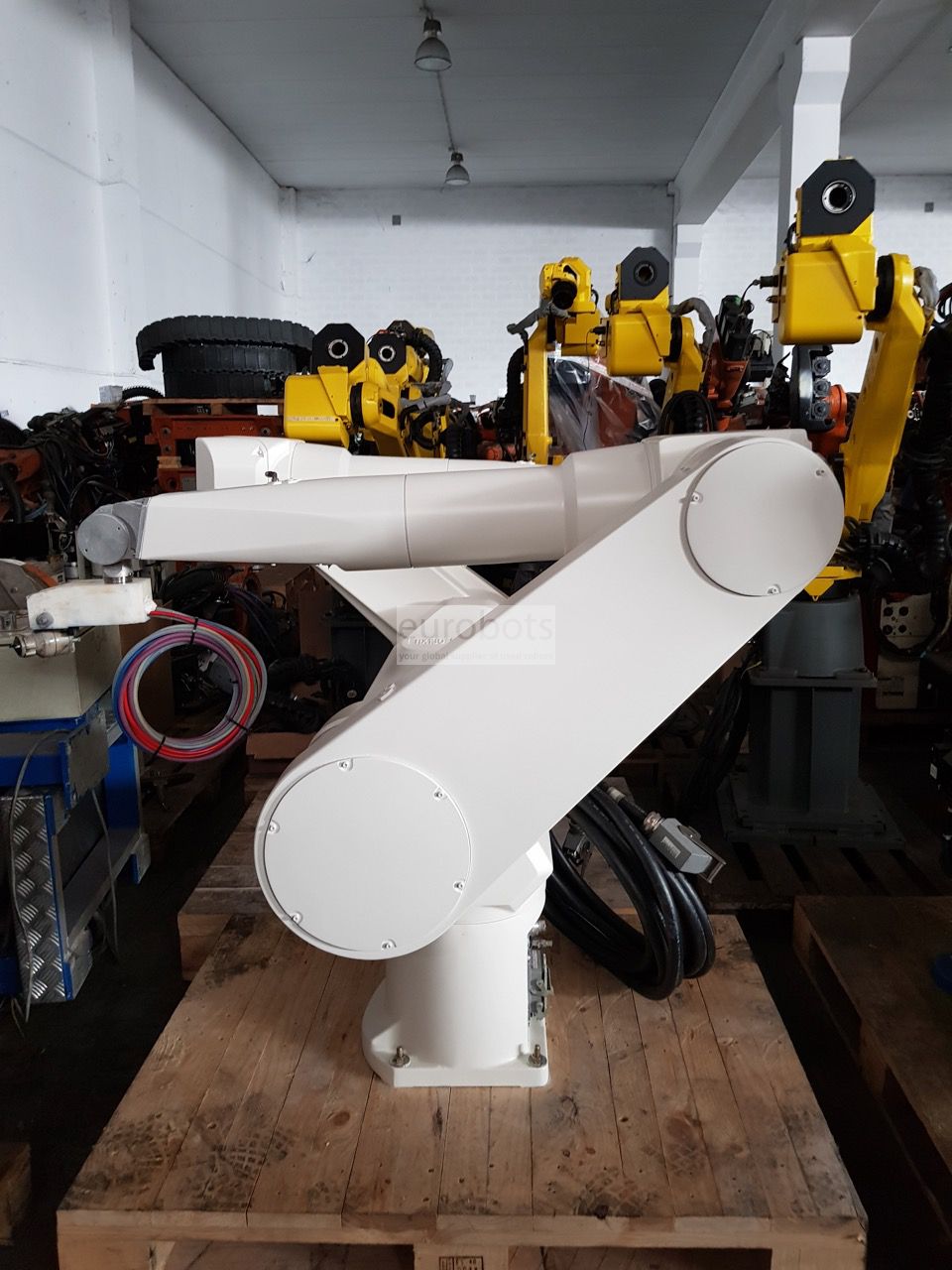

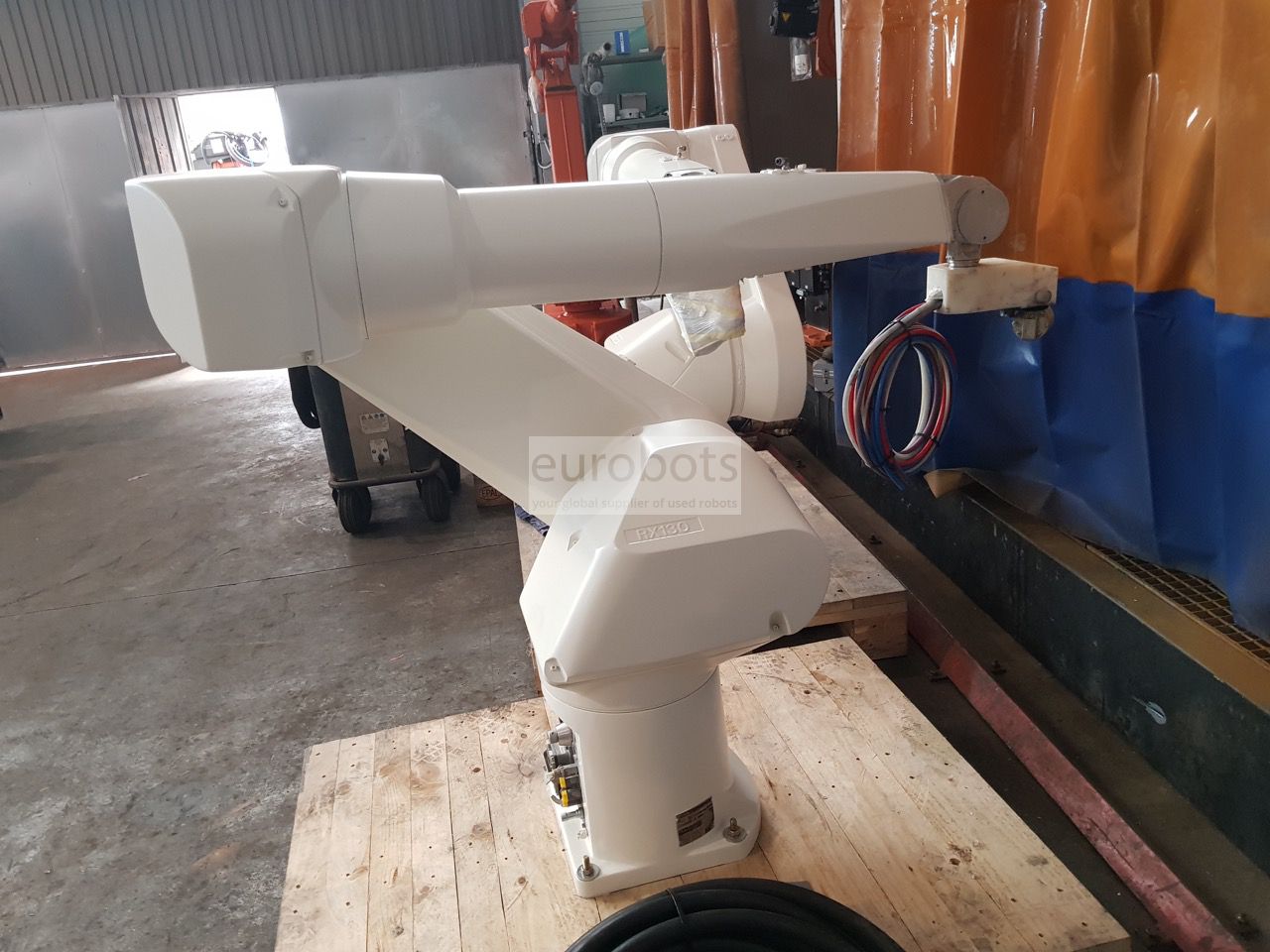

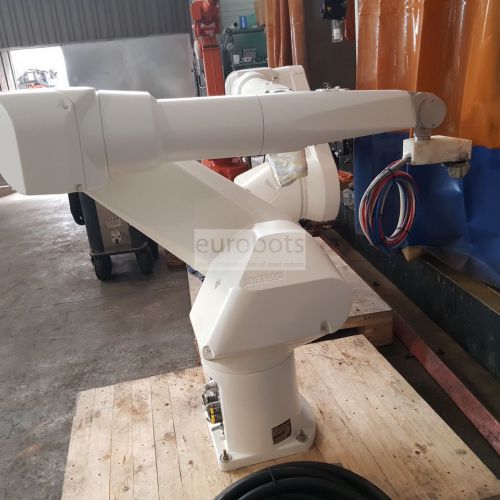

Year 2004. High precision 6 axis robot, medium payload. Fast and accurate.
Suitable for short cycle applications such as handling or loading-unloading of parts from a injection machine for example. Due to its high accuracy (0,05 mm), it can also be used for many applications.

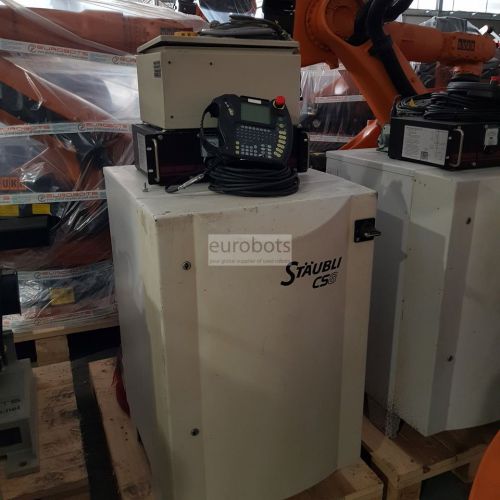

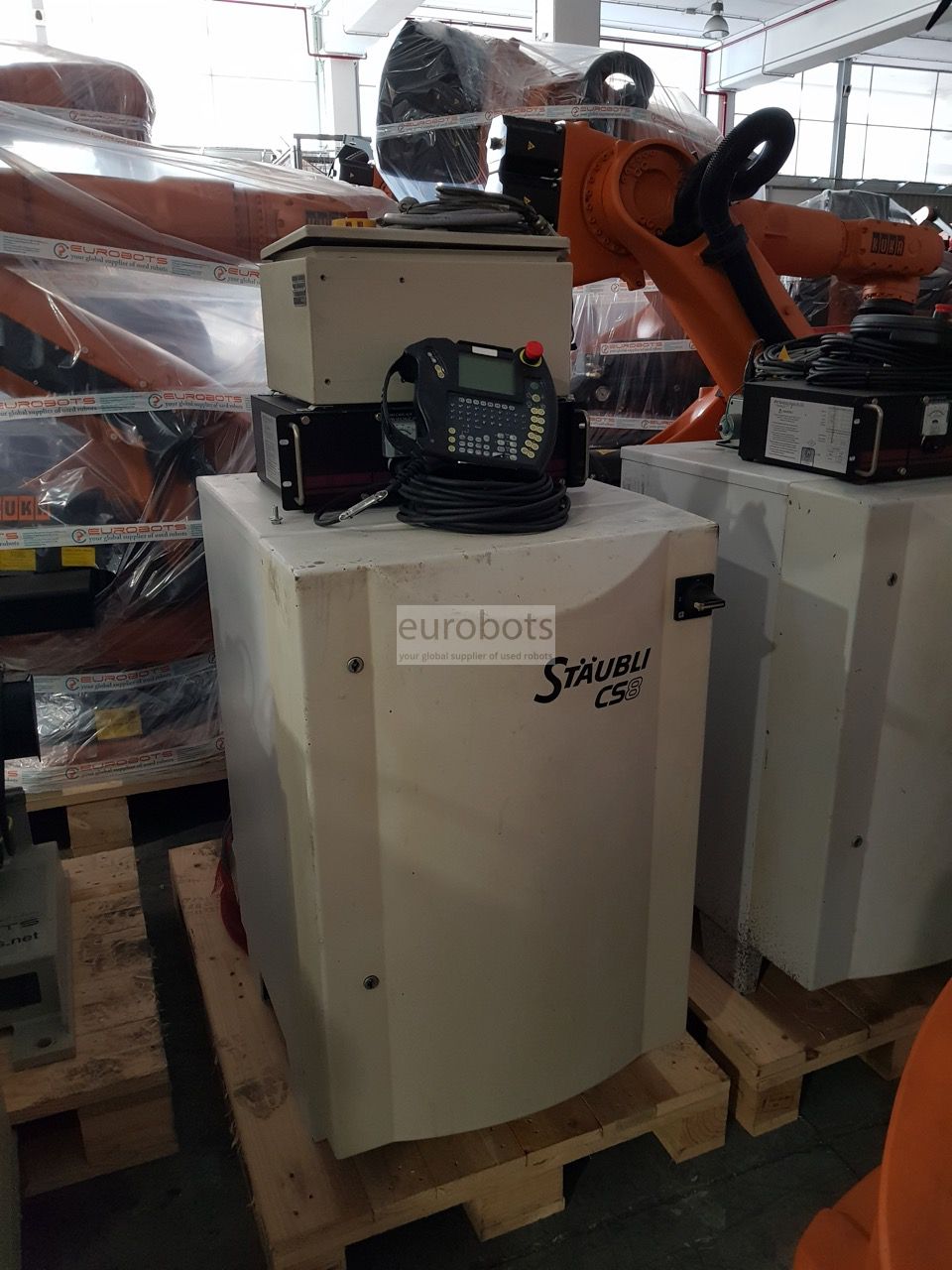

CS8 controller features

Benefits

Ethernet, field bus, digital inputs/outputs, serial connections
Open architecture
Easy to install anywhere
IP65 industrial version
Compactness
All connections on front panel
Accessibility
100 % digital technology

General features

Dimensions: H x L x D: 2550 x 600 x 715 mm
Protection class: IP67
Memory capacity: 128 MB RAM ( min.)
Memory storage: 128 MB (min.) Flash Disk
System/ Programming language: VAL 3 (multitask interpreted language)
PLC-IEC 61131-3 language
Communication: RS232/422 serial link - Ethernet Modbus server
Inputs / Outputs (I/O): 16/16 digital inputs/ outputs and/or 32/32 digital inputs/outputs, optional
Field bus: DeviceNet, Profibus, CANopen, Modbus

General technical specifications

Payload: 10 Kg
Max. arm reach: 2185 mm
Accuracy in repetition: 0,05 mm
Control: CS8

Robot Motion Speed

Axis 1: 278º/s
Axis 2: 278º/s
Axis 3: 356º/s
Axis 4: 409º/s
Axis 5: 480º/s
Axis 6: 1125º/s

Aplicaciones

Pintura , Mecanizado , Manipulación de piezas , Montaje de piezas , Corte por láser , Soldadura Laser Nd-Yag , Corte por plasma
